Datasheet CR-24A, CR-25A and CR-26
Pneumatic tensioning and sealing
for round packages
Characteristics:
Weight: kg (lbs) +++++++++++++++++++++++.3.2 (7) +++++++++++++7.6 (16.6) +++ +++.+++++9.3 (20.4)++++++++++++++++++
Tension force, up to approx. N ++++++ +,+++ + 3000 +++++++++++++.+7000 ++++++++++++..++.8400+++.
Compressed air consumption (6 bar):
– Tensioning, Nl/s +++++++++++++ +++++.+++4 ++++++++++++.++++.6,4 ++++++++,,,+++++++.6,4 +++++++
– Sealing, Nl ++++++++++++++++++++++++.+.3.4 ++++++++,+++.+.++12 +++++++++++,++++++14 +++
Steel strap:
Kemex Strapping Systems 1850, Transcanadienne, ++++.Dorval (Québec) + + . Tél: 514-685-1119 +++,+ .800-755-3639 +..Fax: 514-685-2228
-Width, mm (inch) +++++++++++++++++++.++13, 16, 19 (1/2, 5/8, 3/4) +. . 19 (3/4) ++++++++.,++++ 25, 32 (1, 11/4)
CR-25A

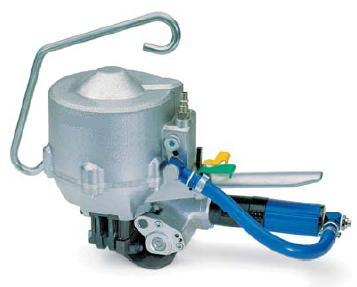

CR-24A
Standard quality:
– Strap thickness, mm +++++++++ +++,++.+++. 0.40–0.63 ++++++++++.0.60–0.80 ++++++++++++0.80–1.00
– Tensile strength,
+.up to approx. N/mm2 (lbs/sq. inch) ++,++++++850 (120 000) +++,++.++850 (120 000) ++++,++++850 (120 000)+++
High tensile quality:
– Strap thickness, mm +++++++.++++++++++++0.40–0.63 ++++ ++++++.0.60–0.80 +++++,++++++0.60–0.80
– Tensile strength,
+.up to approx. N/mm2 (lbs/sq. inch) ++++.+ +.+1100 +++++++++ +++++1100 +++++++++.++++++1100
CR-26A
The handy strapping tool
for stationary applications.
With universal swivelling suspension
bow
Lightweight – can be used with
+or without a spring balancer
With compressed air inlet:
– top-mounted:
+.for strapping applications with
+.suspended hook or
– rear-moounted:
+.for strapping applications + ++. + without.suspended hook
The solution for heavy-duty
applications
With universal swivelling suspension
bow.
++++++++++++++.(inch) ++++++++++++,,+++++.(.015–.025) ++++++++.+(.023–.031) +++++,+++++(.031–.040)
++++++++++++.(inch) +++++++++++ +++++++.(.015–.025) +++++++++.(.023–.031) +++++,+++++(.023–.031)
Matching seals:
13 mm (1/2") ++++++++++++++++++++++++.+CSP 411
16 mm (5/8") ++++++++++++++++++++++++.+CSP 511
19 mm (3/4") ++++++++++++++++++++++++.+CSP 611 +++++++ ++++.CSP 617
25 mm (1") +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++.CSP 717
32 mm (11/4") +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++CSP 817
