Datasheet A-482

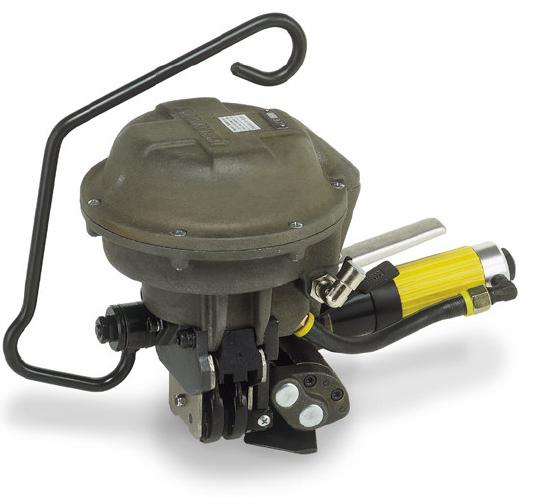

Pneumatic pusher type combination steel strapping tool
Characteristics:
Strapping qualities: + + + ++++ + ++ + +Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions: + widths: ++ +++. 19.0 mm / ¾”
thicknesses: ++ . .0.63 – 0.90 mm / .025-.035”
Weight : +++++++++++.+++ ++++++++. 6.5 kg / 14.3 lbs without suspension +and +7.0 kg / 15.4 lbs with suspension
Average seal strength: +++++++++++++.approx. 75 %
Seals: ++++++++++++++++++++..+++++Overlap seals, see chart
Advantages :
Datasheet A-482
Pneumatic steel strapping tool
Chart of types model A-482
Item No. ++ +++++Model +++++++ + +++++ + Strap widths +++ +Strap thicknesses +Max. Tension
++Tension speeds+++++++++++++++++++++++++++++ + ++..+ mm ++++inch +++ +mm +++++++inch ++++.N +++lbs +.+ ++mm/sec. +inch/sec.
13.4630 ++KA482/19/0.70-.90/UNI/4.0 +++ .+++,19 +++++3/4“ +. 0.70-0.90 ++.027-.035 +4000 +.900 +++++125 +++++4.9
13.4630 ++KA482/19/0.70-.90/UNI/4.0 + +++. .+ 19 +++++3/4“ ++0.70-0.90 ++.027-.035 +4000 +.900 +++++125 +++++4.9
Kemex Strapping Systems 1850, Transcanadienne, ++++.Dorval (Québec) + + ., Tél: 514-685-1119 +++++ .800-755-3639 ++.Fax: 514-685-2228
UNI = Uniflex
Type of joint: +++++++++++++..++++++Double notch upcut joint+++++++++++++++.
Tensioning: +++++++++++++++++++++.The tool is available for two different stages of strap tension, see chart
Suspensions : ++++++++++++ +++++++.Universal suspension bracket is supplied with the tool
ULT = Ultraflex
+Uniflex Regular duty strapping
Recommended seals
mm + ++ inch ++++++++++mm +++ +++ + ++ inch+
19 ++++ ¾“ ++++++19 x 45 x 0.9 ++ ++.--
.Ideal high performance strapping tool for metal products i.e. coils, loads of bars, pipes, +bundles, rods and curved or irregularly shaped packages
max. 850 N/mm2 / 123'000 psi ++++++Max. Tension ++ Tension speeds
Width
Dimensions (W, L, T)
.The perfect double notch upcut joint is accomplished in a single operation
.The low weight of the tool allows a mobile operation without any suspension system
Ultraflex High tensile strapping
max. 1100 N/mm2 / 160'000 psi ++++++Max. Tension ++ Tension speeds
Item No. ++ +++++Model +++++++ + +..+++ + Strap widths +++ +Strap thicknesses
mm ++++inch +++ +mm +++++++inch ++++.N +++lbs +.+ ++mm/sec. +inch/sec.
13.4610 ++KA482/19/0.63-.80/ULT/4.0 ++++++++19 ++++.3/4“ ++0.63-0.80 ++..025-.031 +4000 +900 +++++.125 +++++4.9
13.4620 ++KA482/19/0.80/ULT/7.0 +++++++++++19 ++++.3/4“ +++ 0.80 +++++++.031 +,+7000 +1570 +++++.70 +++++2.7
Tensile strength of the seal material: 600 N/mm² / 87’000 psi
