Datasheet A-483

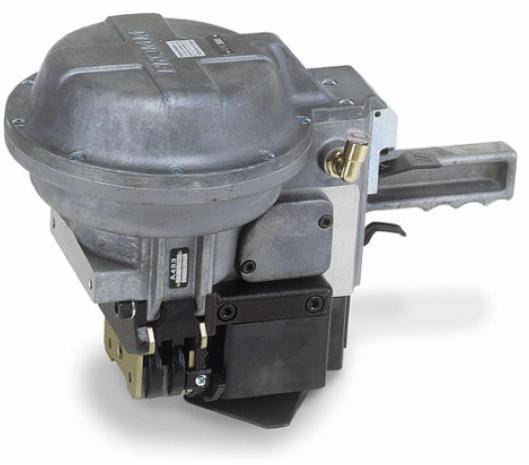

Pneumatic pusher type combination steel strapping tool
Characteristics:
Strapping qualities: + + + ++++ + ++ + +Uniflex and Ultraflex max. 1100 N/mm2 / 160’000 psi
Strapping dimensions: + widths: ++ +++. 25.0 and 32.0 mm / 1 and 1 ¼”
thicknesses: ++ . .0.80 – 1.00 mm / .031-.040”
Weight : +++++++++++.+++ ++++++++. 18.0 kg / 39.7 lbs without suspension +and +19.5 kg / 43.0 lbs with suspension
Average seal strength: +++++++++++++.approx. 75 %
Seals: ++++++++++++++++++++..+++++Overlap seals, see chart
Advantages :
Datasheet A-483
Pneumatic steel strapping tool
Chart of types model A-483
Kemex Strapping Systems 1850, Transcanadienne, ++++.Dorval (Québec) + + ,. Tél: 514-685-1119 +++++ .800-755-3639 ++.Fax: 514-685-2228
UNI = Uniflex regular duty strapping max. 850 N/mm / 123'000 psi
Type of joint: +++++++++++++..++++++Double notch upcut joint+++++++++++++++.
Tensioning: +++++++++++++++++++++.The tool is available for two different stages of strap tension, see chart
Suspensions : ++++++++++++ +++++++.Four different suspension brackets are available; have to be
ordered separately, +++++++++++++++++++++++++++++++see accessories
ULT = Ultraflex high tensile strapping max. 1100 N/mm / 160'000 psi
Recommended seals
mm + ++ inch ++++++++++mm +++ +++ + ++ inch+
25 ++++1“ +++++ 25 x 45 x 0.9 +++1 x 1¾ x .035
.The most rugged pusher type strapping tool of its kind for continuous and shift
+operations demanding a high working reliability
Width
Dimensions (W, L, T)
.High performance machine with an outstanding record of performance in the steel
and non +ferrous industries
.The perfect double notch upcut seal joint is accomplished in one operation
Item No. ++Model +++++++. ++++++.+. , Strap widths +++Strap thicknesses + ++++Max. Tension +++ Tension speeds
,mm ++,inch +++ +mm ++++.+++inch ++++++.N +. +++lbs ++...+.+mm/sec. +inch/sec.
32 1 ++ ¼“ +++++32 x 45 x 0.9 +++1¼ x 1¾ x .035
.Inserting of the strap into the tools is easy since the feed wheel is lifted pneumatically
+and no operator effort is required
.Four different suspension brackets are available thus allowing the tool to be
mounted in any +possible suspension position
Accessories:
normal ++++++++ vertical +++.+.horizontal
(with integrated air supply)
* = changing of the suspension position possible by moving the cable hook
o = changing of the suspension position without moving the cable hook (very fast changes possible, perfect for frequent changes)
Tensile strength of the seal material: 600 N/mm² / 87’000 psi
| 13.4730 |
A483/25/0.80-1.00/7.0/UNI |
25 |
1“ |
0.80-1.00 |
.031-.040 |
7000 |
1570 |
200 |
8.0 |
| 13.4710 |
A483/25/0.80-0.90/7.0/ULT |
25 |
1“ |
0.80-0.90 |
.031-.035 |
7000 |
1570 |
200 |
8.0 |
| 13.4770 |
A483/32/0.80-1.00/7.0/UNI |
32 |
1 ¼" |
0.80-1.00 |
.031-.040 |
7000 |
1570 |
200 |
8.0 |
| 13.4780 |
A483/32/0.80-1.00/9.0/UNI |
32 |
1 ¼" |
0.80-1.00 |
.031-.040 |
9000 |
2020 |
160 |
6.5 |
| 13.4750 |
A483/32/0.80-0.90/7.0/ULT |
32 |
1 ¼" |
0.80-0.90 |
.031-.035 |
7000 |
1570 |
200 |
8.0 |
| 13.4760 |
A483/32/0.80-0.90/9.0/ULT |
32 |
1 ¼" |
0.80-0.90 |
.031-.035 |
9000 |
2020 |
160 |
6.5 |
2
2
| A48.3401 Suspension bracket normal |
* |
* |
* |
| A48.3406 Suspension bracket front |
o |
* |
o |
| A48.3413 Suspension bracket lateral |
o |
o |
* |
| A48.3419
Suspension bracket universal |
o |
o |
o |
