Datasheet PW-558F
Auto Flap Foiding & Sealing Machine
(Top and Side Belt Drive)
Characteristics:
| .Fold the top flaps automatically and smooth which makes the carton sealing done in one process. + + It's durable and suit with Automatic Packaging System. |
| .New Up and Down Mechanism |
| .New tapping head incorporating a V shaped plate (patented) designed to keep the tape straight and in +position for consistent sealing of every carton. This design is superior to previous blower devices. |
| .Two sides belt driven and the main drivn mechanism uses special bearing bracket. With the + + ,,,,,,,+advantage of high precise and low noise to prolong belt's life. |
| .Tape overlap length can be adjusted from 55~65mm. (if need 70±5mm or 95±5mm, can be made by +requested) |
| .KS-558F has a total of 4 drive belts, two side drive belts and two top drive belts. Three motors are supplied to drive belts. The machine has been designed for heavy Cartons and can also seal tall-thin cartons. |
Datasheet PW-558F
Automatic Carton Sealing Machine (Flap Foiding & Sealing)

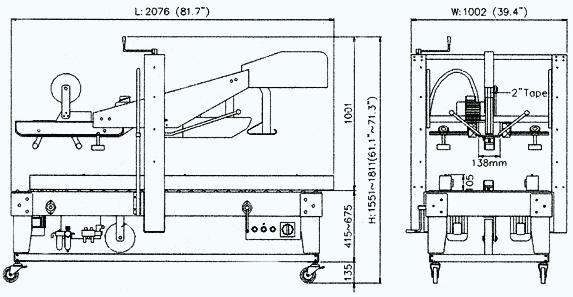

Chart of types model PW-558F
Kemex Strapping Systems 1850, Transcanadienne, ++++.Dorval (Québec) + + . Tél: 514-685-1119 ++++. .800-755-3639 +..Fax: 514-685-2228
Options:
Detection of non-OPP tape.
Detection of cutting-off failure
Power Supply: +++++++++++++++++++++++++. ,.+++1Ø 110V , 220V (50/60Hz)
++++++++++++++++++++++++++++++,++++++ +,+++3Ø 220V，380V，(50/60Hz)
++++++++++++++++++++++++++++++++++++++,,+++++,Two motors, 555W
Sealing Speed: ++++++++++++++++++++++++++++++++,20M/min at 60 Hz
Tape Width: ++++++++++++++++++++++++++++++++,+, 2" or 3" Optional
G.W. +++++++++++++++++++++++++++++++++++,+++,+, 405 kgs , 891(lbs)
Note: Specifications subject to change without notice.
Detection of sealing failure
Auto-stop device.
Safety fence.
Three-sides folding mechanism.
Shipping Size: ++++++++++++++++++++++++++,L2135 x W1030 x H1585mm
++++++++++++++++++++++++++++++++++,++L84.1"x W40.6"x H62.4"(inch)
N.W. ++++++++++++++++++++++++++++++++++ ,++325 kgs, 715(lbs)
Cartons/Hr: , +++++++++++++++++++++++++++++++++700 cartons per hour
+++++++++++++++++++++++++++++++++++++++(Carton: L300 x W300 x H300 mm)
